PI Control 21r/Min Mineral Grinding Cement Ball Mill ISO9001

Name: PI Control 21rMin Mineral Grinding Cement Ball Mill ISO9001
Brand: Hengyang
Price: 1 USD

China PI Control 21r/Min Mineral Grinding Cement Ball Mill ISO9001 wholesale

Brand Name : Hengyang

Model Number : HY-140

Certification : ISO9001

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 5 Sets/month

Delivery Time : 45-60 days

Packaging Details : negociated

name : cement ball mill

Application : cement

condition : new

capacity : according to plant

color : according to buyer

Contact Now

Cement Grinding Ball Mill used in cement production line

A cement mill is the equipment used to grind the hard, nodular clinker from the cement kiln into the fine grey powder that is cement. Most cement is currently ground in ball mills and also vertical roller mills which are more effective than ball mills.

The operation characteristics of cement ball mill system were analyzed, and research on control of optimal cement ball mill load was conducted in the method of ball mill load measurement through its noise, ball mill load online optimization, Fuzzy Sample PI control algorithm and development of human machine interface. To minimize costs, expansibility of available DCS was fully utilized in the hardware and software implementation of cement ball mill load control system. A complete load control system of cement ball mill was developed and field operation demonstrated its satisfactory performance in increasing cement production, reducing energy cost and ensuring cement quality.

Cement Ball Mill Technical Details:

Sepc. (Dia. x L)	Rotating Speed (r/min)	Inlet grain size (mm)	Capacity (t/h)	Grinder load (t)	Main motor			Main reducer		Weight (t)
Sepc. (Dia. x L)	Rotating Speed (r/min)	Inlet grain size (mm)	Capacity (t/h)	Grinder load (t)	Type	Power(kw)	Rotating speed(r.p.m)	Type	Speed ratio	Weight (t)
φ2.2×11	20.91	≤25	15～17	50	TR1512-8	570	740	Zd80	5.6	92
φ2.4×8	20.91	≤25	14～18	39.5～42	TRQ1512-8	570	740	Zd80-9	5	76.4
φ2.4×9	20.91	≤25	23～25closed	50	TR1512-8	570	740	Zd80-9	5	91
φ2.4×10	20.91	≤25	16～22	50	TR1512-8	570	740	Zd80-9	5	111
φ2.4×11	21	≤25	Open19～24 closed 22～28	62-65	YR710-8/1180	710	740	JDX630	5.6	125
φ2.4×12	21	≤25	Open18～20 closed 21～23	63-65	YR800-8/1180	800	740	MBY710	6.3	127
φ2.4×13	21	≤25	Open21～22 closed 24～26	66-68	YR800-8/1180	800	740	MBY710	6.3	131
φ2.6×10	20.6	≤25	21～24	64	YR800-8/1180	800	740	JDX710	6.3	140
φ2.6×13	20.6	≤25	28～31	81	YR1000-8/1180	1000	740	JDX800	6.3	158
φ3.0×9	19.13	≤25	40～45	85	YR1000-8/1180	1000	740	MBY800	7.1	148
φ3×11	18.92	≤25	44～47	95	YR1250-8/1430	1250	740	JDX900	7.1	177
φ3×12	18.92	≤25	48～52	103	YR1250-8/1430	1250	740	JDX900	7.1	182
φ3×13	18.92	≤25	39～45	116max	YR1400-8/1430	1400	740	JDX900	7.1	200.7
φ3.2×11	18.3	≤25	45～48	112max	YR1600-8/1430	1400	740	JDX900	7.15	213.6
φ3.2×13	18.7	≤25	50～55	133max	YR1600-8/1430	1600	740	JDX1000	7.15	237
φ3.4×11	18	≤25	45～55	120max	YR1600-8/1430	1600	740	JDX1000		230
φ3.5×13	17	≤25	60～65	156max	YR2000-8/1730	2000	740	TS130-A-F1		257.6
φ3.8×13 (main bearing)	17	≤25	65～70	190	YR2500-8/1730	2500	740	JS130-C-F1		316
φ3.8×13 (slide shoe edge-driving)	17	≤25	65～70	185	YR2500-8/1730	2500	740	DMG22/2500		313
φ4×13	16.3	≤25	78～80	191	YRKK900-80	2800	745	JS140-A		348
φ4.2×11 (main bearing)	15.8	≤25	100～110	182～190	YR2800-8/17830	2800	740	JS140-A-F1D		350
φ4.2×13 ((main bearing))	15.2	≤25	110～120	230	YRKK1000-8	3350	740	MFY355-A		375
φ4.2×13 (main bearing)	15.2	≤25	120～130	245	YRKK1000-8	3350	740	MFY355-A		390
φ4.2×13 (central driving)	15.2	≤25	110～120	230	YRKK1000-8	3350	740	MFY355-A		380
φ4.6×14	15	≤25	100～115	285	YR1000-8	4200	740	J3160-C		485

PI Control 21r/Min Mineral Grinding Cement Ball Mill ISO9001

Product Tags:

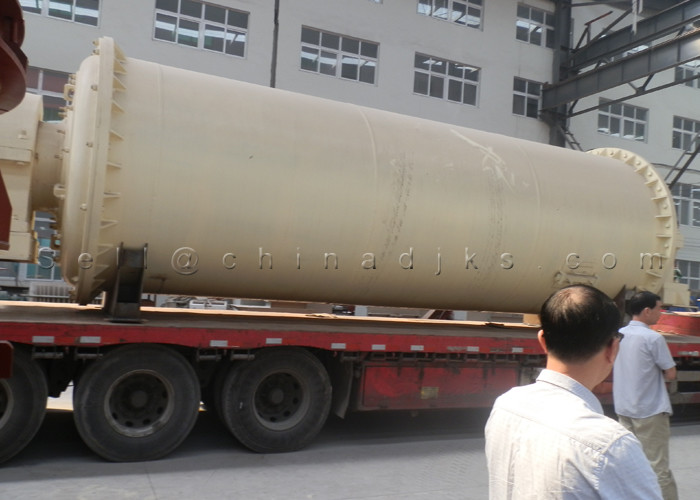

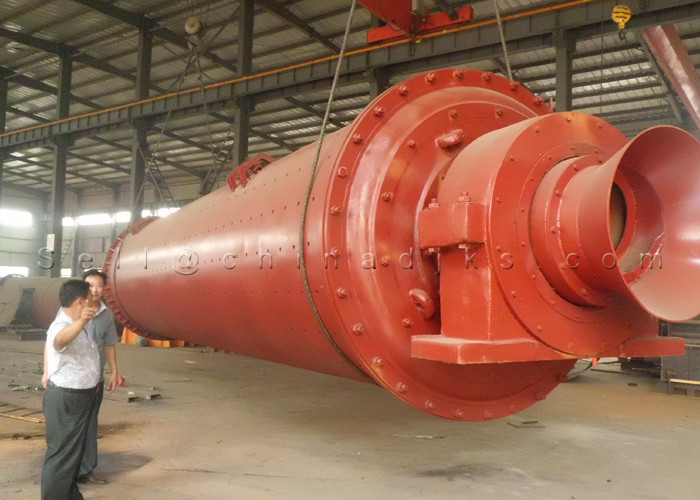

PI Control 21r/Min Mineral Grinding Cement Ball Mill ISO9001 Images
