Air Jet Mills

Name: Air Jet Mills
Brand: Hengyang
Price: 56200 USD

Brand Name : Hengyang

Model Number : HC-624

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : 56200-76100

Payment Terms : T/T

Supply Ability : 270 sets/month

Delivery Time : 20-40 days

Packaging Details : negociated

Name : Air jet mills

Application : ultrafine powder

Capacity : 200-1500kg/h

Color : customize

OEM : Accept

Contact Now

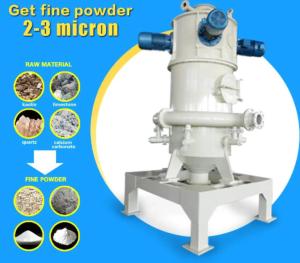

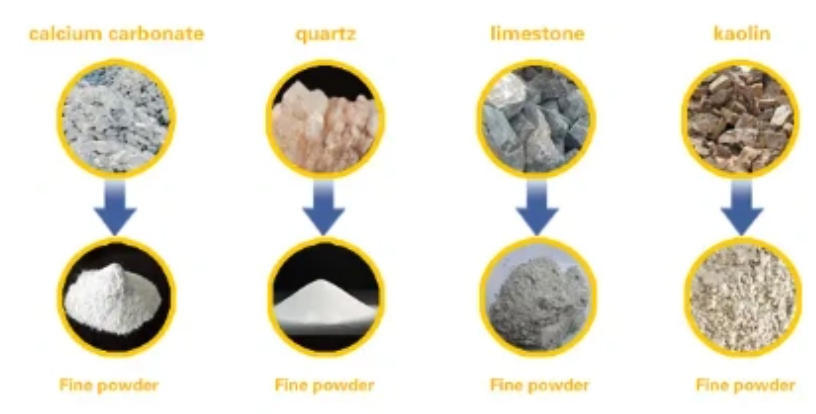

Air jet mills are one of the main ultrafine powder grinding equipment. They are ideal for fine, high-purity, and high-value materials. They can produce powders with d97 = 3–5μm. Output ranges from dozens of kilograms to several tons per hour. Used for non-metallic minerals like talc, graphite, wollastonite, and kaolin. Also used for abrasives, chemicals, pigments, pharmaceuticals, metals, and rare earths.

Air Jet Mills

Air Classifier mills are widely used in the non-metallic mineral industry. Commonly used for coal-based kaolin, calcite, marble, chalk, talc, and steatite. Also used for chemicals and pesticides in ultrafine grinding. Typical product fineness reaches d97 = 10μm (1250 mesh). With high-performance classifiers, products of d97 = 5–7μm can be produced.

Air Jet Mills

parameter/ Model	MQW03	MQW06	MQW010	MQW20	MQW30	MQW40	MQW60	MQW80	MQW120	MQW160	MQW240
Feeding Size(mm)	<1	<2	<2	<3	<3	<3	<3	<3	<3	<3	<3
Production Capacity(kg/h)	0.3~10	10~150	20~300	40~600	100~900	200~1200	500~2000	800~3000	1500~6000	2000~8000	4000~12000
Particle size(D97:μm)	3~45	3~45	3~45	3~45	3~45	3~45	3~45	3~45	3~45	3~45	3~45
Classifier motor (kw)	2.2	3	5.5/7.5	7.5/11	11/15	15/7.5x3	7.5x3	11x3	15x3	15x4	15x6
Air consumption(m³/min)	3	6	10	20	30	40	60	80	120	160	240
Air pressure(Mpa)	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1	0.6~1
